Single Block Vertical Wire Drawing Machine for Screw and Bolt Making

Get high-quality single block vertical wire drawing machines for screw and bolt making at our factory. Increase productivity and efficiency. Contact us now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DL series
Max. Number of Block
15
Certification
ISO, Ce
Condition
New
Function
to Make The Steel Wire to Be Thinner
Color
Decided by Customer
Delivery Time
60-90 Days
Raw Material
Carbon Steel and Alloy
Transport Package
Plastic Film and Wooden Box
Trademark
Pingsheng
Origin
Wuxi City
HS Code
8463102000
Production Capacity
50 Sets/ Year

Product Description

Single Block Vertical Wire Drawing Machine for Screw and Bolt Making Tel: + 86 17701519738

1. Company introduction:
Our company is a big private enterprise manufacturing various wire drawing machines with more than 25 years professional experience. We supply advanced wire drawing machine and excellent after-sales service for Chinese and overseas metallic industry.

We manufacture Pingsheng brand straight line wire drawing machine series, wet wire drawing machines, inverted vertical wire drawing machines, combined wire drawing machines, OTO type (Pulley drawing machine ) wire drawing machines and relevant auxiliary machines.

These products are in an attractive appearance, reasonable price, stable performance, easy operation and production efficiency and with great safety. It has the emergency braking control, once there is something wrong with the working, it can be brake automatically.


2. Vertical Type Wire Drawing Machine:

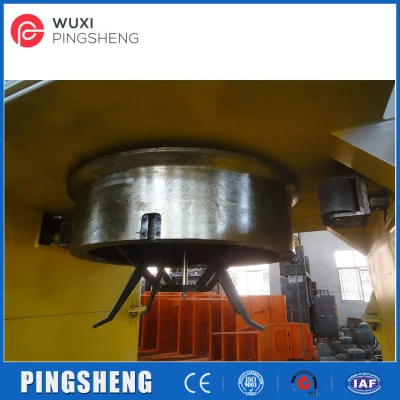

A. Capstan
Capstan diameter is 1200mm(1400mm), surface is hardening treatment, and also has the tungsten carbide coating, very durable, HRC is over 60, long service life, ensure using over 22000 hours.



B. Frame
Frame is welded by steel, we use the good quality steel and eliminate the oxygen layer, then do the vibrating treatment to eliminate the welding stress. It has the advantage of good steel strength and strong carrying capacity.



C. Driving type

Use the one-stage belt, and then transfer to helical gearbox, stable transmission process, noise is less than 80dB, all the bearings use the good quality brand.


D. Operating platform

The platform designs the self-rotation power, and can adjust the working speed of the working table automatically, ensure the matching with the speed of the capstan. The capacity is 2.5 tons.


E. Pressure roller

Casting wear-resistant nylon material, both wearable and would not press on the wire, to ensure the using life of the element.

3. Pictures

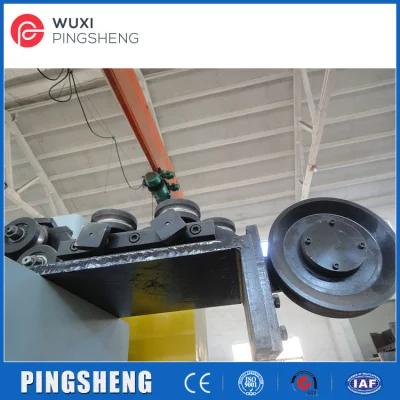

Single Block Vertical Wire Drawing Machine for Screw and Bolt Making
Single Block Vertical Wire Drawing Machine for Screw and Bolt Making

Single Block Vertical Wire Drawing Machine for Screw and Bolt Making

Single Block Vertical Wire Drawing Machine for Screw and Bolt Making

4. Layout

                                                      Single Block Vertical Wire Drawing Machine for Screw and Bolt Making
